Introduction

For custom plastic component manufacturers, choosing between thermoforming vs injection molding can make or break project success. Each method excels in different scenarios—from small-batch prototypes to high-volume automotive parts.

Thermoforming shines for large, lightweight components with simple-to-moderate shapes. Injection molding, by contrast, dominates for complex, high-precision parts. Whether you need thermoforming services for a medical device tray or automotive injection molding for a dashboard clip, understanding their core differences is key to balancing cost, quality, and timeline. This guide breaks down both processes, their ideal uses, and how to pick the right one for your custom project.

Core Process Differences Between Thermoforming and Injection Molding

The biggest distinction lies in how each method shapes plastic.

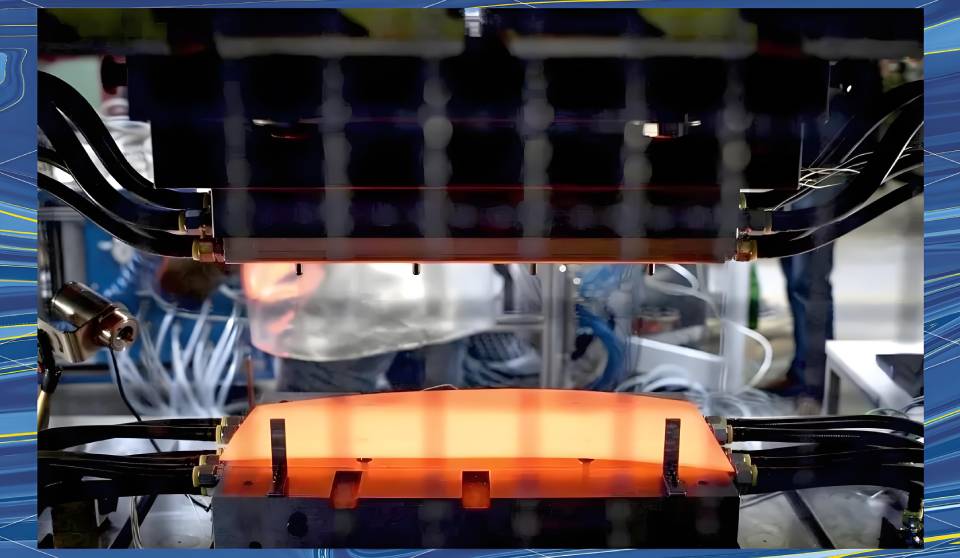

Thermoforming uses a simple, heat-based approach at the heart of the thermoforming process:

1.A flat sheet of thermoforming plastic (like PET, PVC, or ABS) is heated until flexible.

2.The soft sheet is stretched over a thermoforming mold—usually aluminum, which is fast and affordable to make.

3.Vacuum pressure or mechanical force presses the plastic against the mold.

4.Once cooled, the part is trimmed to its final size.

A specialized subset called Prent thermoforming (optimized for medical or food-grade needs) adds extra steps to ensure smooth, contaminant-free surfaces—critical for surgical tool trays or food packaging. This “form-first” method works best for parts with large surface areas (like appliance housings) where extreme complexity isn’t required.

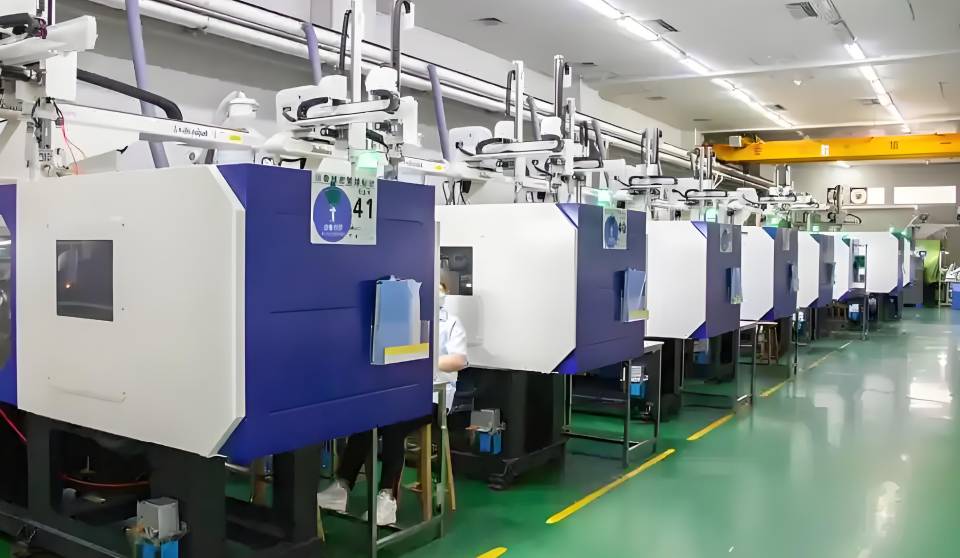

Injection molding follows a more intensive, high-pressure process:

1.Plastic pellets are melted in a plastic injection molding press.

2.The molten plastic is forced at high pressure (up to 10,000 psi, or about 68,950 kPa) into a custom injection mold—typically steel, for durability.

3.After cooling, the mold opens to release a fully formed part—no trimming needed for most designs.

This method handles complex shapes easily. For example:

    Insert injection molding embeds metal components (like screws or sensors) into plastic during molding, cutting down on assembly work.

    Injection blow molding creates hollow parts (like plastic water bottles) in one step.

For custom parts needing tight tolerances (±0.001 inches, or about ±0.025 mm) or intricate details, injection molding is unmatched.

Material Compatibility and Best Plastics for Each Method

Not all plastics work equally well with each process—your part’s function will guide material choice.

Thermoforming relies on thin, flexible thermoforming plastic sheets that can stretch without tearing. Common options include:

    PET: Clear and food-safe, perfect for display trays or beverage containers.

    PVC: Durable and chemical-resistant, used for medical device housings or pipe fittings.

    ABS: Impact-resistant, ideal for tool cases or toy components.

Prent thermoforming often uses specialized materials, like anti-microbial plastics for surgical instrument trays. The process avoids high shear forces (which can damage sensitive polymers), so it’s safer for delicate materials.

Injection molding handles a far wider range of plastics—including engineering-grade materials that stand up to heat, stress, or harsh environments:

    Polycarbonate: Shatterproof, used for automotive light covers or safety goggles.

    PEEK: Heat-resistant (up to 500°F/260°C), critical for medical injection molding parts like surgical instrument handles.

    Nylon: Wear-resistant, great for gears or fasteners in machinery.

Unlike thermoforming, injection molding can also use “filled” plastics (mixed with glass or carbon fibers) to boost strength. This makes it the top choice for industries like aerospace or automotive, where automotive injection molding parts need to withstand engine bay heat.

Mold Cost, Lead Time, and Balancing Upfront Investment and Speed

Mold costs and production timelines are make-or-break for custom projects—and the two methods differ drastically here.

Thermoforming has low upfront costs and fast turnaround:

    Thermoforming mold production is simple: Aluminum molds take 1–2 weeks to make, costing \(500 to \)5,000 for custom designs.

    Even complex Prent thermoforming molds (with texture or fine details) rarely exceed $10,000.

This makes thermoforming ideal for small-batch projects (100–5,000 units) or prototypes. For example, a startup needing 500 custom thermoforming plastic enclosures (like smart thermostat housings) would pay \(3,000 for a mold plus \)1.50 per part—total cost of \(3,750 (not \)1,050, as previously miscalculated).

Injection molding requires far higher upfront investment:

    Injection mold production is labor-intensive: Steel molds (needed for high-volume runs) take 4–8 weeks to make, costing \(10,000 to \)100,000+ for complex designs (like insert injection molding molds with multiple cavities).

    But steel molds are durable—they can produce 1 million+ parts before needing replacement.

This makes injection molding cost-effective for high-volume projects (5,000+ units). For example, a car manufacturer needing 100,000 automotive injection molding dashboard clips would pay \(20,000 for a mold plus \)0.30 per part—total cost of \(50,000. Thermoforming the same clips would cost \)4,000 for a mold plus \(1.20 per part—total cost of \)124,000, or 2.5x more.

Injection molding also has faster cycle times: A plastic injection molding press can make 2–3 simple parts per minute, compared to 1 part every 2–3 minutes for thermoforming.

Industry Applications Where Thermoforming and Injection Molding Shine

Each process dominates specific industries, based on part design and volume needs.

Thermoforming is the go-to for large, low-to-medium complexity parts:

    Medical: Prent thermoforming makes sterile trays for surgical tools—its smooth surfaces meet FDA rules for contamination control.

    Retail: Clear thermoforming plastic display cases (for electronics or toys) leverage the process’s ability to create large, transparent parts.

    Automotive: Interior door panels or trunk liners, where lightweight, large surfaces matter more than ultra-precision.

    Packaging: Custom trays for electronics (like laptop chargers) or food (like deli meats) benefit from fast design tweaks—thermoforming services can adjust tray sizes in hours, not weeks.

Injection molding leads in high-precision, high-volume industries:

    Medical: Medical injection molding creates tiny, complex parts like insulin pen nozzles or catheter fittings—tolerances of ±0.0005 inches (±0.013 mm) ensure they work with other devices.

    Automotive: Automotive injection molding produces everything from dashboard buttons to engine sensors—insert injection molding embeds metal connectors into plastic parts to add functionality.

    Consumer Goods: Injection blow molding makes plastic bottles (for shampoo or water) in bulk, while standard injection molding creates durable parts like laptop casings or toothbrush handles.

For parts that need multiple features (threads, ribs, or embedded components), injection molding is the only practical choice.

Small-Batch vs. High-Volume Production and Matching Method to Volume

Your production volume is the single biggest factor in choosing between the two methods.

Thermoforming works best for small to medium batches (100–5,000 units):

    Low mold costs mean you won’t waste money on expensive tooling for short runs.

    Faster retooling: Changing a thermoforming mold takes hours, not weeks—great for testing design tweaks (like adjusting a tray’s depth for a new product).

Injection molding becomes cost-effective at high volumes (5,000+ units):

    The high upfront mold cost gets spread across thousands of parts, driving per-part costs down.

    Faster cycle times handle large orders without delays—critical for meeting automotive or consumer goods production deadlines.

For example:

    A startup testing 200 prototype IoT device enclosures: Choose thermoforming (fast, low-cost).

    A brand making 50,000 plastic toy parts for holiday sales: Choose injection molding (cheaper per unit, faster production).

Customization Flexibility and Adapting to Design Needs

The ability to tweak designs or add unique features varies between the two methods.

Thermoforming offers limited but fast customization:

    You can easily adjust thermoforming plastic thickness (from 0.010 to 0.250 inches, or ~0.25 to 6.35 mm) or add surface textures (like a matte finish for grip) by modifying the thermoforming mold.

    Prent thermoforming adds extras like anti-fog coatings (for medical device windows) or anti-static layers (for electronics trays).

But thermoforming struggles with complex features: Internal threads, undercuts (recessed areas), or embedded components usually require secondary machining—adding cost and time.

Injection molding offers unmatched customization for complex designs:

    Insert injection molding lets you embed metal parts (like screws or sensors) directly into plastic, eliminating assembly steps.

    Injection blow molding creates hollow parts with consistent wall thickness—critical for medical vials or beverage bottles.

    You can add multiple features in one run: A single injection mold can produce a part with threads, ribs, and a logo—no secondary work needed.

For medical injection molding, this is a game-changer: A single mold can make a catheter fitting with a built-in seal, ensuring precision and reducing contamination risk. The only downside? Changing an injection mold requires retooling, which takes weeks and costs thousands.

Simple Decision Guide for Custom Project Choices

To pick between thermoforming vs injection molding, ask yourself three key questions:

1.What’s your production volume?

    <5,000 units: Choose thermoforming (low mold cost, fast turnaround).

    5,000 units: Choose injection molding (lower per-part cost, faster production).

2.How complex is your part?

    Simple shapes (large surfaces, no internal features): Thermoforming works best.

    Complex shapes (threads, undercuts, embedded parts): Injection molding is necessary.

3.What material do you need?

    Thin, flexible plastics (PET, PVC): Thermoforming is ideal.

    Engineering-grade or filled plastics (PEEK, glass-filled nylon): Injection molding is required.

4.Real-world examples to guide you:

    A medical device firm needing 1,000 sterile tool trays: Prent thermoforming (small batch, simple shape, medical-grade plastic).

    An automotive supplier needing 50,000 dashboard clips: Automotive injection molding (high volume, complex shape, heat-resistant plastic).

    A startup needing 300 smart speaker enclosures: Thermoforming services (small batch, fast design tweaks).

For many projects, the two methods complement each other: A product might use thermoforming for a large outer housing and injection molding for small, precise internal parts (like buttons or gears).

Conclusion: Choosing the Right Method for Your Custom Success

Thermoforming vs injection molding isn’t about “better” or “worse”—it’s about matching the method to your project’s unique needs.

    Thermoforming delivers fast, low-cost results for small-batch, large-scale parts. Prent thermoforming excels in medical and food-grade applications where cleanliness and speed matter.

    Injection molding offers unmatched precision and efficiency for high-volume, complex parts. Specialized options like medical injection molding and insert injection molding meet strict industry standards.

As a custom component manufacturer, understanding these differences lets you avoid overpaying for tooling or compromising on quality. Whether you partner with thermoforming services for prototypes or invest in plastic injection molding press runs for mass production, the right choice will balance cost, speed, and performance—ensuring your custom plastic parts meet both your specs and your customers’ expectations.
