Thermoforming vs. Injection Molding: Choosing the Right Solution for Custom Plastic Projects

Introduction

For custom plastic component manufacturers, picking between thermoforming and injection molding can make or break your project. These two methods serve very different needs:

Thermoforming uses thermoforming equipment and specialized thermoforming materials to make large, lightweight parts. Injection molding, by contrast, relies on tools like the plastic injection molding press to create complex, ultra-precise components.

Whether you need custom plastic thermoforming for a medical device tray or medical injection molding for tiny surgical parts, understanding their key differences—from how thermoforming systems work to injection mold costs—will help you balance budget, quality, and timeline. This guide breaks down exactly how each process works and how to choose the right one for your work.

How Thermoforming Systems and Injection Tools Shape Plastic Differently

The biggest difference between the two lies in how they turn plastic into parts—and the equipment they use to do it.

Thermoforming: Simple, Sheet-Based Shaping

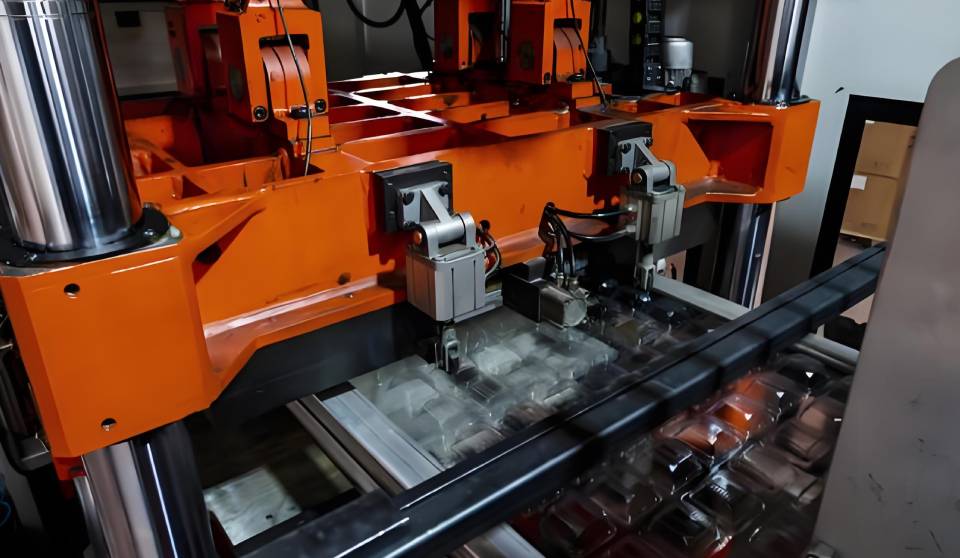

Thermoforming relies on thermoforming systems—all-in-one setups that heat, stretch, and cool plastic to make parts. Here’s how it works step-by-step:

Start with thermoforming plastic sheets (flat, thin plastic panels) made from thermoforming materials like PET, PVC, or ABS.

Feed the sheet into thermoforming equipment, which heats it until it’s soft and flexible (like warm rubber).

Stretch the soft sheet over a mold (usually aluminum, which is cheap and fast to make).

Use vacuum pressure or gentle force to press the sheet against the mold, then let it cool.

Trim the excess plastic—you’re left with a finished part for custom plastic thermoforming projects.

A popular type of thermoforming is abs thermoforming: It uses ABS plastic (tough and impact-resistant) to make parts like tool casings or device housings. Since ABS holds its shape well after cooling, it’s perfect for products that need durability.

Injection Molding: High-Pressure, Complex Shaping

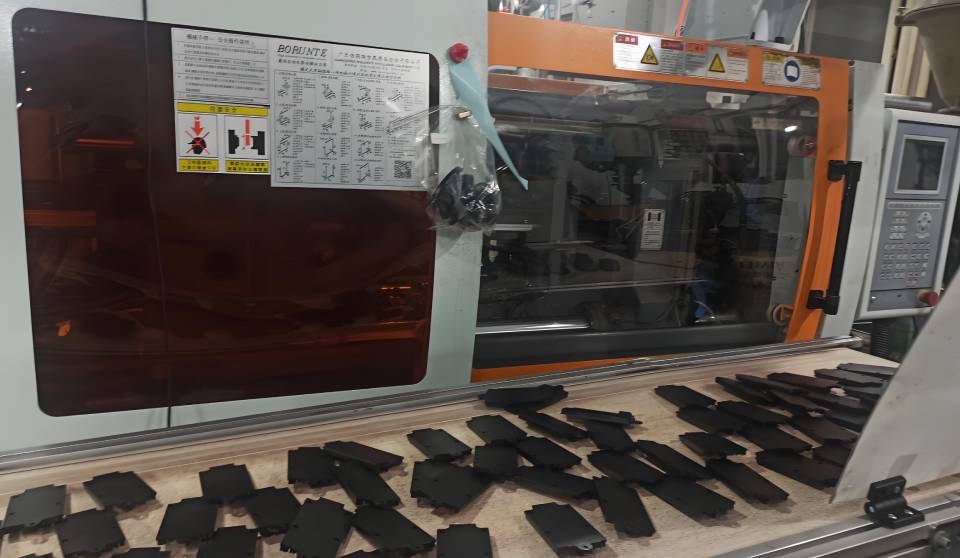

Injection molding uses a plastic injection molding press—a powerful machine that melts plastic and forces it into molds. The process is more intensive:

Pour plastic pellets into the press, where they’re melted into a liquid (like melted wax).

Force the molten plastic at high pressure (up to 10,000 psi—strong enough to shape even hard plastics) into a custom injection mold (usually steel, which lasts for thousands of uses).

Let the plastic cool and harden inside the mold.

Open the mold to remove the part—no trimming needed for most designs.

This method is great for complex shapes. For example, medical injection molding uses tiny, precise injection molds to make parts like catheter fittings (with tolerances as tight as ±0.001 inches—about the width of a human hair). These parts need to be perfect for patient safety, and injection molding delivers that consistency.

Thermoforming Materials vs. Injection Plastics: What Works Best

Not all plastics work with both processes—your part’s job will decide which material (and method) to use.

Thermoforming Materials: Thin, Flexible, and Easy to Shape

Thermoforming depends on thermoforming materials that can stretch without tearing. The most common options are:

    Thermoforming plastic sheets made of PET: Clear and safe for food, so they’re used for display trays or beverage carriers.

    PVC sheets: Resistant to chemicals, great for industrial bins or medical device covers.

    ABS sheets: The star of abs thermoforming—tough enough for tool cases or toy shells.

Thermoforming systems also handle specialized materials, like anti-static sheets for electronics packaging (to protect sensitive parts from static damage). Since thermoforming uses gentle heat, it won’t damage delicate materials—unlike some high-pressure processes.

Injection Molding Plastics: Durable, Versatile, and Industrial-Grade

Injection molding works with a much wider range of plastics—including “engineering-grade” materials that stand up to heat, stress, or harsh conditions:

    Polycarbonate: Shatterproof, used for automotive light covers or safety goggles.

    PEEK: Heat-resistant (up to 500°F/260°C), critical for medical injection molding parts like surgical instrument handles (they need to survive sterilization).

    Nylon: Wear-resistant, perfect for gears or fasteners in machinery.

Unlike thermoforming, injection molding can mix plastics with fillers (like glass or carbon fibers) to make parts stronger. This is why it’s used for aerospace or automotive parts—they need to handle extreme stress that thermoforming equipment can’t replicate with thin sheets.

Cost and Timeline: Thermoforming Equipment vs. Injection Molds

Upfront costs and how fast you need parts are huge factors—and the two methods differ a lot here.

Thermoforming: Low Cost, Fast Turnaround

Thermoforming is budget-friendly because thermoforming equipment and tooling are simple:

    Thermoforming systems for small to medium projects are cheaper than injection presses.

    Molds are made of aluminum, which takes 1–2 weeks to make and costs \(500 to \)5,000 (even complex molds for custom plastic thermoforming rarely exceed $10,000).

This makes thermoforming perfect for small-batch projects (100–5,000 units). For example: A startup needing 300 ABS device casings (for a new smart thermostat) could use abs thermoforming. They’d pay \(3,000 for a mold plus \)1.50 per part—total cost of $3,450. They’d get parts in 2–3 weeks, which is fast enough to test their product.

Injection Molding: High Upfront Cost, Cheaper at Scale

Injection molding costs more upfront but saves money when you make lots of parts:

    Injection mold costs start at \(10,000 (steel molds for high-volume runs) and can go up to \)100,000+ for complex designs (like medical injection molding molds).

    The plastic injection molding press is expensive to run, but it’s fast: It can make 2–3 parts per minute, compared to 1 part every 2–3 minutes with thermoforming equipment.

For high-volume projects (5,000+ units), injection molding is cheaper. For example: A medical supplier needing 100,000 catheter fittings would pay \(20,000 for an injection mold plus \)0.30 per part—total cost of \(50,000. Using **custom plastic thermoforming** for the same parts would cost \)4,000 for a mold plus \(1.20 per part—total \)124,000 (2.5x more).

Industry Uses: Where Thermoforming and Injection Molding Excel

Each process is best for specific industries, based on part size, complexity, and volume.

Thermoforming: Great for Large, Simple Parts

Thermoforming shines in industries that need big, lightweight components:

    Medical: Custom plastic thermoforming makes sterile trays for surgical tools. The soft heat from thermoforming systems keeps anti-microbial materials safe, meeting FDA rules.

    Consumer Goods: Abs thermoforming produces durable casings for small appliances (like blenders or toasters). Thermoforming equipment can add textures (like a matte finish) to make parts look better.

    Retail: Clear thermoforming plastic sheets make display cases for electronics or jewelry. It’s easy to adjust the design—you can change tray sizes in hours, not weeks.

Injection Molding: Perfect for Small, Complex Parts

Injection molding leads in industries that need precision and high volume:

    Medical: Medical injection molding makes tiny parts like insulin pen nozzles. These parts need to be identical every time, and injection molds deliver that consistency.

    Automotive: The plastic injection molding press produces dashboard buttons, sensor housings, and other small parts in bulk. Car manufacturers need thousands of these parts per day, so speed matters.

    Aerospace: Injection molds create heat-resistant parts (like engine components) using filled plastics. These parts can’t be made with thermoforming, since thin sheets can’t handle the stress.

How to Choose: A Simple Guide for Custom Plastic Projects

To pick the right method, ask yourself three questions:

How many parts do you need?

<5,000 units: Choose thermoforming. It’s cheaper for small batches, and thermoforming equipment sets up fast for custom plastic thermoforming.

5,000 units: Choose injection molding. The high upfront cost of the injection mold gets spread across lots of parts, making it cheaper per unit.

How complex is your part?

Simple shapes (large surfaces, no tiny details): Thermoforming works best. It uses thermoforming plastic sheets and basic systems—no need for expensive molds.

Complex shapes (threads, undercuts, tiny details): Injection molding is necessary. Only a plastic injection molding press can shape these intricate designs.

What material do you need?

Thin, flexible plastics (PET, ABS for abs thermoforming): Thermoforming is ideal.

Engineering-grade or filled plastics (PEEK, glass-filled nylon): Injection molding is required.

Real-World Examples to Help You Decide

A startup testing 200 prototype device casings: Use abs thermoforming. It’s cheap, fast, and uses existing thermoforming equipment—perfect for testing designs.

A medical firm making 50,000 catheter fittings: Use medical injection molding. The precision of the injection mold ensures patient safety, and high volume makes it cost-effective.

A retail brand needing 1,000 display trays: Use custom plastic thermoforming. Clear thermoforming plastic sheets show off products, and you can adjust the design quickly.

In many cases, you’ll use both: A product might have a large thermoformed housing (like a TV back cover) and small injection-molded parts (like the buttons on the remote).

Conclusion

Thermoforming and injection molding aren’t “better” or “worse”—they’re tools for different jobs.

Thermoforming, with its thermoforming equipment and versatile thermoforming materials, is great for custom plastic thermoforming projects: small batches, large parts, or designs that need fast tweaks (like abs thermoforming casings). It’s cheap, fast, and easy to use.

Injection molding, with its plastic injection molding press and precision injection mold tooling, is perfect for complex, high-volume parts—especially medical injection molding components where accuracy is non-negotiable. It’s more expensive upfront, but it saves money at scale.

As a custom plastic manufacturer, understanding these differences will help you avoid overspending or compromising on quality. Whether you invest in thermoforming equipment for small-batch work or a plastic injection molding press for mass production, the right choice will fit your volume, design, and material needs—ensuring your parts meet both your specs and your customers’ expectations.
