Thermoforming Technology Explained: A Comprehensive Guide from Principles to Applications

In modern manufacturing, thermoforming stands out as a highly efficient and adaptable plastic processing technique. From transparent food containers in supermarkets to intricately designed automotive dashboards, this technology plays a pivotal role. As a parts manufacturer specializing in vacuum forming, we invite you to explore how thermoforming transforms ordinary plastic sheets into versatile, functional products.

What is Thermoforming?

Thermoforming is a process that softens plastic sheets through heating, and then shapes them using vacuum, air pressure, or mechanical force to conform to molds. Ideal for producing thin-walled, large-sized plastic components, it typically handles materials ranging from 0.1mm to 6mm in thickness.

Imagine crafting a chocolate shell: rigid plastic becomes pliable when heated (thanks to its thermoplastic properties), drapes over a mold like melted confectionery, and solidifies upon cooling. This unique characteristic makes thermoforming the go-to solution for custom thermoformed plastics.

Three Core Thermoforming Processes

A. Vacuum Forming

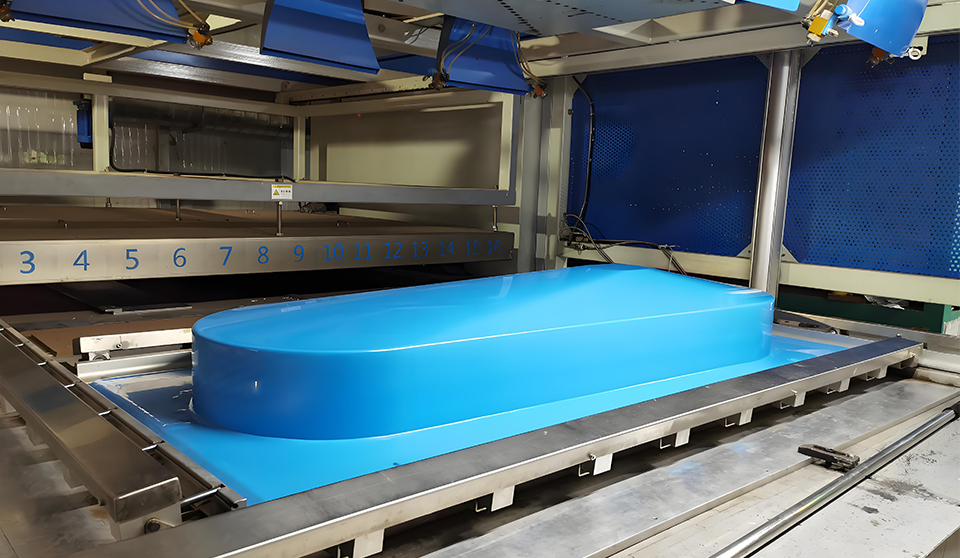

The classic method: A vacuum pump draws softened plastic onto mold surfaces

Cost-effective for simple structures like food trays and electronic housings

Foundation technology for most vacuum forming companies

B. Pressure Forming

Enhances vacuum with 6-8 bar air pressure for tighter mold contact

Achieves ±0.15mm surface precision, rivaling injection molding

Perfect for medical device enclosures with intricate textures

C. Twin-Sheet Forming

Simultaneously forms and welds two sheets into hollow structures

Used for toolboxes and automotive air ducts requiring internal support

Frequently employs high-density polyethylene (HDPE thermoforming)

Material Selection: The "Ingredients" of Thermoforming

PET (Polyethylene Terephthalate)

Dominates 70% of food packaging with crystal clarity and FDA compliance. PET thermoforming products include beverage carriers and fresh produce containers.

HDPE (High-Density Polyethylene)

Withstands harsh chemicals and -50°C temperatures, ideal for chemical containers.

ABS (Acrylonitrile Butadiene Styrene)

Combines durability and aesthetics for speaker panels and luggage shells.

PP (Polypropylene)

Microwave-safe up to 120°C, perfect for ready-meal containers.

These thermoformable materials become pliable between 180-220°C, then regain rigidity upon cooling—perfectly aligning with thermoforming requirements.

Why Choose Thermoforming?

Lightning Speed

The first parts produced within 30 minutes of mold setup; 20-30 cycles/minute in mass production (fast forming).

Cost Efficiency

Aluminum molds cost 90% less than injection molding tools, ideal for custom thermoforming.

Design Freedom

Accommodates oversized components up to 2m×3m—unachievable via traditional injection molding.

Eco-Friendly

95% scrap recyclability aligns with sustainable manufacturing goals.

Applications of Thermoforming Products

Automotive: Dashboard liners, door panels

Healthcare: Sterilization trays, disposable packaging

Consumer Goods: Refrigerator liners, toy components

Industrial: Machine guards, pipe connectors

These thermoforming products, delivered through solutions from professional thermoforming manufacturers, are reshaping industries globally.

Selecting a Quality Thermoforming Partner

Mold Expertise

Superior thermoforming molds require precise temperature control for uniform results.

End-to-End Services

Full-spectrum capabilities from 3D design analysis to anti-static coatings. Example: Custom medical tray development covering design → molding → sterilization packaging.

Certifications

FDA compliance for food-grade production; TS16949 for automotive components.

The Future of Thermoforming

Smart Thermal Control: Infrared sensors optimize heating zones, reducing energy waste

Composite Materials: Plastic fused with metal mesh/carbon fiber for enhanced strength

Green Innovation: Bio-based PLA replacing conventional petroleum plastics

Conclusion

As a leading manufacturer in the field of plastic molding, we continue to redefine the boundaries of manufacturing through speed, economy, and customization. Whether you are a startup in need of vacuum thermoforming or another industry seeking complex thermoforming solutions, this technology can provide breakthrough answers.

When choosing thermoforming services, prioritize partners with proven expertise and innovation capabilities - after all, perfect molding starts with mastering every temperature control detail. If you have a thermoforming project that needs a quote, please feel free to send your project, we are always online.
