Vacuum Casting for Prototyping: Why It's a Game-Changer

Introduction

In the fast-paced world of product development, the ability to swiftly and accurately create prototypes can significantly influence a project's success. For decades, designers and engineers were constrained by the limitations of traditional manufacturing methods—be it the high costs and long lead times of injection molding for small batches or the surface roughness and structural weaknesses of early rapid prototyping techniques.

The quest for a process that could bridge the gap between a digital model and a high-fidelity, functional prototype has been relentless. Enter vacuum casting, a technology that has quietly revolutionized the landscape of prototype manufacturing. By leveraging the simple yet powerful principle of vacuum pressure, this process transforms liquid polyurethane resins into parts that are remarkably close to final production quality.

It is not merely an incremental improvement; it is a fundamental shift, empowering innovators to iterate with unprecedented speed, cost-efficiency, and material versatility. This article delves into why vacuum casting has become an indispensable game-changer for industries ranging from automotive to consumer electronics, offering a compelling blend of precision, performance, and practicality.

What is Vacuum Casting? Demystifying the Core Process

Vacuum casting is a sophisticated replication technique primarily used for producing high-quality prototypes and small batches of functional components. At its heart, the vacuum casting process is elegantly straightforward. It begins with a master model, typically created using 3D printing or CNC machining, which represents the exact geometry of the desired part. This master is used to create a flexible silicone mold. The key differentiator of vacuum casting lies in its use of a vacuum chamber during the crucial pouring phase.

Once the silicone mold is prepared and placed inside the vacuum machine, liquid polyurethane vacuum casting resins are poured in. The vacuum environment plays a critical role by instantly removing any trapped air bubbles from the resin as it flows into the mold's intricate cavities. This ensures that the final vacuum casting plastic parts are dense, free from voids, and possess exceptionally smooth surfaces. The mold is then transferred to a heating cabinet to cure, after which the flexible silicone is carefully cut open to release the finished part. This process, championed by many a specialized vacuum casting factory, excels at producing parts with complex geometries, fine details, and a variety of material properties that can mimic production-grade plastics.

Key Advantages That Make Vacuum Casting a Revolutionary Technology

The widespread adoption of vacuum casting is not without reason. Its revolutionary status is anchored in several distinct and powerful advantages that directly address the pain points of modern product development.

Unmatched Efficiency and Cost-Effectiveness: Compared to traditional injection molding, which requires expensive steel molds, the tooling for vacuum casting—the silicone mold—is remarkably affordable and quick to produce. This makes it exceptionally cost-effective for small-batch production, often ranging from a handful to about 50 parts. A vacuum casting service dramatically lowers the financial barrier to entry for functional testing and market validation.

Exceptional Prototype Fidelity: The ability of the vacuum to draw resin perfectly into every detail of the mold results in vacuum casting products with superb surface quality, sharp features, and minimal visible defects. This high fidelity means that prototypes are not only functional but also visually representative of the final product, which is crucial for stakeholder presentations and marketing purposes.

Remarkable Material Versatility: The range of available polyurethane vacuum casting resins is vast. Whether you need a part that is rigid like ABS, flexible like TPU, transparent like polycarbonate, or even heat-resistant, there is a resin formulation to match. This versatility allows designers to test different material performances without committing to production tooling.

Rapid Turnaround Times: The simplicity of the tooling and casting process enables a very quick turnaround. From a master model to the first functional parts, the cycle is often a matter of days, not weeks. This speed accelerates the entire design iteration cycle, allowing teams to fail fast, learn quickly, and refine their products more effectively than ever before.

Vacuum Casting vs. Other Prototyping Methods: A Comparative Analysis

To truly appreciate the value of vacuum casting, it is essential to place it in context with other common prototyping methods. While techniques like CNC machining and standard 3D printing (FDM/SLA) have their merits, vacuum casting often outperforms them in specific scenarios.

CNC machining, which carves parts from a solid block of material, is excellent for achieving high strength and accuracy. However, it can be wasteful of material, costly for complex internal geometries, and may not economically produce small batches of identical parts. In contrast, once a silicone mold is created in vacuum casting, replicating multiple copies is fast and inexpensive, making it superior for small-series production.

Standard 3D printing offers unparalleled geometric freedom and is perfect for a single, concept-proofing model. Yet, parts can suffer from anisotropic strength (weakness along layer lines) and often require post-processing to achieve a smooth finish. A vacuum casting service delivers parts that are isotropic—meaning they have consistent strength in all directions—and come out of the mold with a production-ready surface finish. Furthermore, the material selection in vacuum casting more closely replicates the properties of injection-molded thermoplastics.

Even compared to other vacuum-based processes like V-Casting used for metal parts, which employs a vacuum to form a plastic film over a pattern and uses dry sand to build the mold, polyurethane vacuum casting for plastics is distinct in its application for creating the end-product directly, not the tooling for metal.

The Step-by-Step Vacuum Casting Process: From Digital Model to Physical Part

Understanding the seamless workflow of vacuum casting clarifies why it is such an efficient and reliable method. The process is a harmonious blend of digital design and analog replication, typically managed by an experienced vacuum casting factory.

Step 1: Master Pattern Creation: The journey begins with a master pattern, a perfect physical representation of the final part. This is most commonly produced using high-resolution 3D printing (like SLA or PolyJet) to capture every detail.

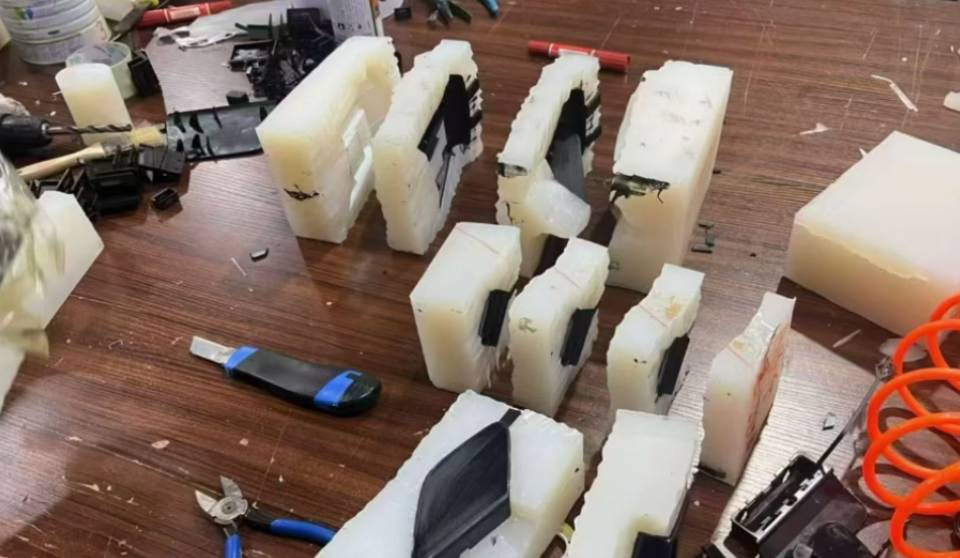

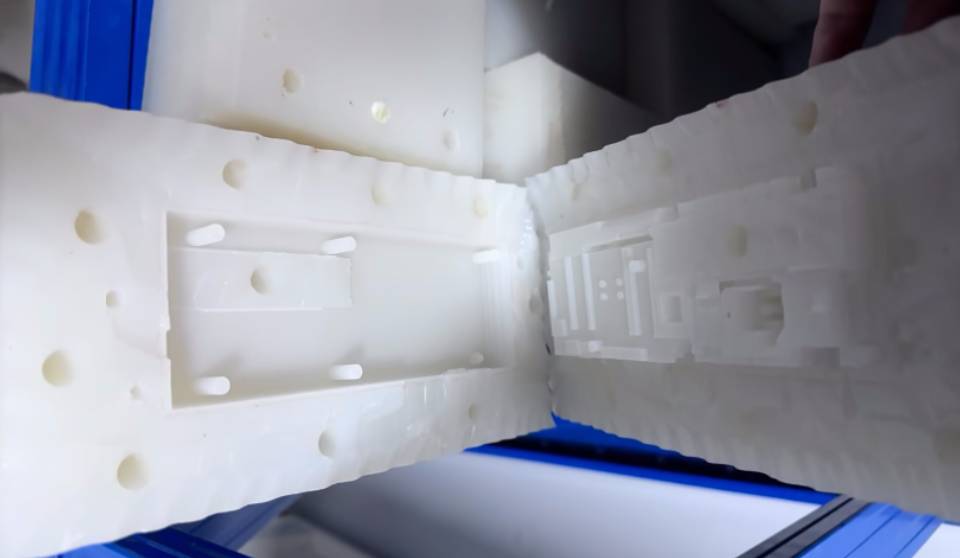

Step 2: Mold Making (Silicone Tooling): The master pattern is suspended in a casting frame. Liquid silicone is then poured over it and cured in an oven to form a solid, flexible block. Once cured, this block is strategically cut open to remove the master pattern, leaving behind a perfect negative impression cavity—the silicone mold.

Step 3: Resin Preparation and Degassing: The chosen polyurethane vacuum casting resin is meticulously measured and mixed. To ensure purity and prevent bubbles from the outset, this mixture is often placed in a vacuum chamber to degas before pouring.

Step 4: The Casting Cycle: The silicone mold is placed inside the vacuum casting machine. The mixed resin is poured into the mold's pouring gate while the machine is running. The vacuum instantly evacuates all air from the chamber, allowing the resin to fill the entire cavity without trapping any air.

Step 5: Curing and Demolding: The filled mold is transferred to a heating cabinet to accelerate the curing process. After a set time, the mold is taken out, and the flexible silicone is carefully peeled back to extract the new, solid vacuum casting plastic part.

Step 6: Post-Processing: The final step involves removing any necessary support structures, such as sprues and gates, and conducting light finishing touches like sanding or painting to meet the required specifications.

Material Wonders: The Versatility of Polyurethane in Vacuum Casting

The heart of vacuum casting's material versatility lies in the advanced family of polyurethane vacuum casting resins. These are not simple, one-size-fits-all materials; they are engineered compounds designed to mimic a wide spectrum of commercial thermoplastics. This allows a vacuum casting service to deliver vacuum casting products that are suitable for a multitude of testing and presentation purposes.

For instance, if a final product is intended to be made from ABS, a rigid and impact-resistant PU resin can be used. For a component that requires flexibility, such as a gasket or a phone case, a rubber-like, elastomeric resin is available. There are transparent resins that rival the clarity of PMMA (acrylic) for lens or display prototypes, and glass-filled resins that offer enhanced stiffness. Furthermore, specialized resins can provide properties like high-temperature resistance (suitable for under-the-hood automotive testing), flame retardancy, or even biocompatibility for medical device prototypes.

This material wonderland means that designers are no longer limited by the constraints of a single prototyping technology. They can use vacuum casting to conduct rigorous functional tests, including stress tests, snap-fit assessments, and even limited environmental exposure tests, with materials that behave very similarly to the intended production plastic.

Real-World Applications: Where Vacuum Casting Products Shine

The practicality of vacuum casting extends across a breathtaking array of industries. Its ability to produce robust, precise, and visually appealing parts makes it the go-to solution for numerous applications.

Automotive and Transportation: In this sector, speed and accuracy are paramount. Vacuum casting is extensively used to create functional components like ductwork, interior trim panels, housings for electronic controls, and even under-the-hood parts for validation testing before committing to hard tooling.

Consumer Electronics and Appliances: This is a domain where aesthetics and feel are as important as function. Vacuum casting products include prototype casings for smartphones, remote controls, wearable devices, and kitchen appliance housings. The process delivers the smooth, seamless surfaces and precise button details that consumers expect.

Medical and Healthcare: The medical industry relies on vacuum casting for prototyping diagnostic device enclosures, ergonomic handles for surgical tools, and various other equipment housings. The availability of biocompatible, sterilizable resins further expands its utility in this highly regulated field.

Aerospace and Industrial Design: For aerospace, where every gram and millimeter counts, vacuum casting allows for the rapid iteration of lightweight, complex components like drone housings, ducting, and custom jigs and fixtures. Industrial designers use it to create stunningly accurate models for client presentations and design reviews.

Choosing the Right Vacuum Casting Service Partner for Your Project

With a clear understanding of the process and its benefits, selecting the right vacuum casting factory or service provider becomes the critical final step. Not all vacuum casting services are created equal, and the choice of partner can profoundly impact the success of your project.

When evaluating a potential provider, consider their expertise and technical support. A good partner will offer consultative support on design for manufacturability (DFM), helping you optimize your part design for the vacuum casting process to avoid potential issues like air traps or uneven wall thickness. Examine their portfolio to gauge their experience in your specific industry and with parts of similar complexity.

The technology and equipment they use are also vital. Inquire about the type of vacuum casting machines they operate. Modern machines, akin to the advanced vacuum systems used in other industries for stability and precision, ensure consistent and high-quality results. Furthermore, assess their quality control procedures. A reliable vacuum casting service will have rigorous checks in place at every stage, from master model inspection to final part measurement, ensuring that the vacuum casting products you receive meet your exact specifications.

Conclusion: Embracing the Future of Agile Prototyping

Vacuum casting has unequivocally redefined the boundaries of what is possible in prototype development. It is no longer a niche technique but a cornerstone of modern, agile manufacturing strategy. By delivering injection-molding-quality parts at a fraction of the cost and time, it empowers companies to innovate more boldly, reduce time-to-market, and make more informed decisions before significant capital investment. As materials continue to evolve and the technology becomes even more accessible, the role of vacuum casting will only grow more prominent. For any organization serious about product development, embracing this game-changing technology is not just an option—it is a strategic imperative to stay competitive in an ever-accelerating world.
