Introduction

For custom component manufacturers, CNC machining and sheet metal fabrication are two foundational technologies—but they serve very different purposes. Both create precision parts, but their core processes, material focuses, and ideal uses vary drastically.

For example: A medical device maker might pick medical sheet metal fabrication for a stainless steel housing (it’s flat, durable, and easy to sterilize). An aerospace client, though, would choose CNC machining for a complex aluminum bracket (it needs intricate 3D details). This blog breaks down their key differences—from sheet metal fabrication processes to CNC machining equipment—to help you pick the right method for your custom parts.

Core Process Comparing Subtractive Manufacturing and Sheet Metal Shaping

The biggest difference is how each technology makes parts.

CNC machining is “subtractive”: It starts with a solid block (or bar) of material—metal, plastic, even wood. Computer-controlled tools (drills, mills, lathes) cut away excess material until the part is done. For instance, a CNC vertical machining center might carve a CNC machining part like a precision gear from a solid aluminum block. It could remove 60% of the material to get the final shape.

Sheet metal fabrication, by contrast, shapes flat metal sheets into 3D parts—without removing much material. To fabricate sheet metal, you typically cut (laser or plasma), bend (with press brakes), and join (weld or rivet) the sheets. These steps are all part of sheet metal fabrication processes. A common example is automotive sheet metal fabrication: Flat stainless steel sheets are cut to size, bent into car door panels, then welded to the frame.

This “form-first” approach makes sheet metal great for parts with large, flat surfaces. CNC machining, though, excels at intricate, solid components.

Material Focus on Metal Sheets vs. Diverse Solid Materials

Sheet metal fabrication centers on flat metal sheets—mostly stainless steel, aluminum, or steel.

Stainless steel sheet metal fabrication (often called SS sheet metal fabrication) is popular for parts that need to resist rust. Think medical device housings or food processing equipment. Medical sheet metal fabrication goes a step further: Sheets are finished to be sterile—smooth edges, non-porous surfaces—so they work for surgical tools or diagnostic machine enclosures.

CNC machining is way more flexible with materials. It works with solid metals (aluminum, titanium, brass), plastics (like ABS or PEEK for CNC plastic machining), and even composites. For example:

I.An electronics client might use small CNC machining to make plastic connectors (lightweight and cheap for prototypes).

II.An aerospace firm could use 5 axis CNC machining services for a titanium engine component (strong and precise for high-stress use).

This versatility makes CNC the go-to for parts that need non-metallic materials or solid-metal complexity—something fabrication of sheet metal can’t do.

Ideal Applications for Industry-Specific Part Needs

Each technology works best in different industries, based on part design and function.

Sheet metal fabrication dominates sectors that need large, durable, low-cost metal parts:

    Automotive sheet metal fabrication: Makes body panels, frames, and exhaust components (they’re lightweight but rigid).

    Quick turn sheet metal fabrication: Critical for HVAC—custom ductwork or fan housings need fast delivery to keep installations on track.

    Prototype sheet metal fabrication: Lets manufacturers test large parts (like a new appliance shell) without expensive tooling.

CNC machining shines in industries that need ultra-precision or complex shapes:

    Swiss CNC machining: Makes tiny, detailed parts—like medical device pins (tolerances as tight as ±0.0005 inches) or watch components.

    Large CNC machine setups: Handle big parts, like industrial gearboxes or aircraft structural components.

    CNC plastic machining: Used for consumer electronics (custom phone case molds) or medical devices (plastic surgical instrument handles).

If your part needs internal channels, threaded holes, or 3D complexity, CNC machining is usually better.

Equipment and Workflow Using Specialized Tools for Unique Goals

The tools and steps for each process are totally different.

Sheet metal fabrication uses tools made for flat metal:

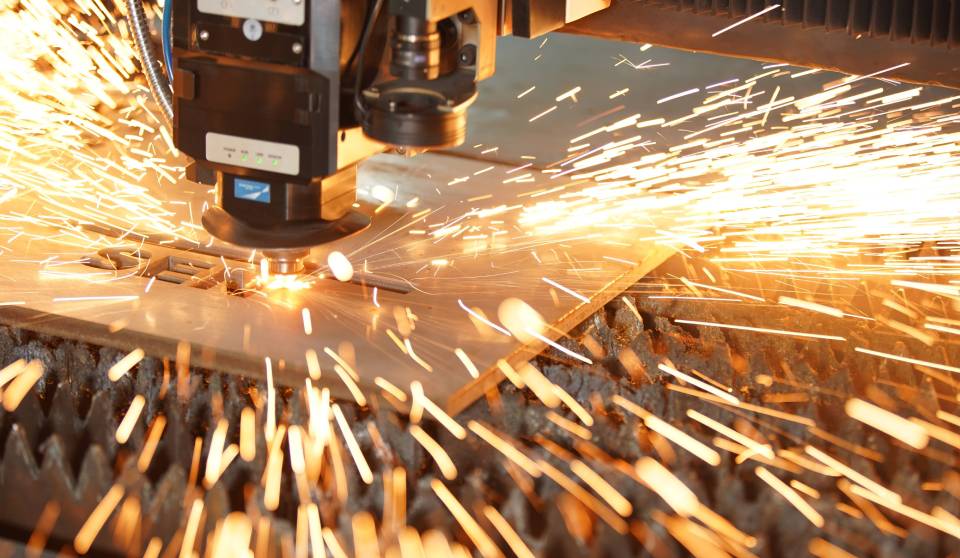

    Laser cutters (for precise sheet cutting).

    Press brakes (to bend sheets into angles).

    Welders (to join parts).

The workflow is straightforward: Design the flat “net” shape of the part, cut the sheet, bend it to specs, then finish (deburr or paint). For quick turn sheet metal fabrication, small batches can be done in 3–5 days.

CNC machining uses computer-controlled equipment:

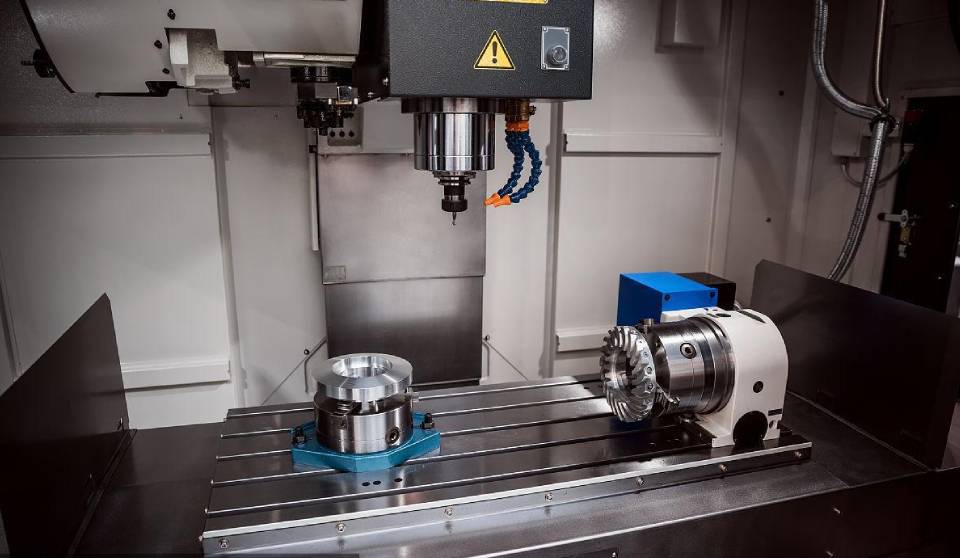

    CNC vertical machining center (for 3-axis parts, like simple brackets).

    Lathes (for cylindrical parts, like bolts).

    5 axis CNC machining services (for complex 3D shapes, like aerospace components).

The workflow starts with CAD design, then CAM programming (to map tool paths), then machining the solid material. CNC machining equipment needs precise calibration—for example, a large CNC machine might need hourly checks to keep tolerances tight. This adds setup time, but it ensures consistency: A batch of 100 CNC machining parts will all have identical dimensions (critical for aerospace or medical work).

Cost and Lead Time Balancing Speed and Precision Investment

Cost and delivery times also set the two apart.

Sheet metal fabrication is usually cheaper for large, simple-to-medium complexity parts—especially with quick turn sheet metal fabrication. It uses flat sheets, and laser cutting “nests” parts (arranges them to minimize waste), so high-volume runs cost less. For example: Automotive sheet metal fabrication for 1,000 car door panels might cost 40% less than CNC machining the same part from solid metal. Lead times are shorter, too—most sheet metal projects take 1–2 weeks, even for custom designs.

CNC machining cost is higher. Why? It’s subtractive (more material waste) and uses specialized equipment. A 5 axis cnc machining services project for a complex aerospace part could cost 2–3x more than a similar sheet metal part. Small-batch or prototype work (like small cnc machining for 10 plastic enclosures) is more affordable, but lead times are longer—2–4 weeks for most projects—because of programming and setup.

Still, the precision is worth it for parts where tiny errors (like a misaligned hole) would cause failure—think medical devices or aircraft components.

Prototype Capabilities for Testing Designs at Different Stages

Both work for prototyping, but they fit different design phases.

Prototype sheet metal fabrication is ideal for testing large, structural parts early on. For example: A home appliance manufacturer might use it to test a stainless steel fridge door prototype. They can check fit (does it close right?), weight (is it too heavy?), and durability (will it dent easily?) before finalizing the design. Since sheet metal prototypes use the same steps as production (cutting, bending), they accurately show how the final part will perform.

CNC machining is better for small, precise prototypes. An electronics startup might use CNC plastic machining to make 5 prototype sensor housings. They can test how the plastic handles heat (will it melt?) or how internal components fit (do wires line up?). Swiss cnc machining even prototypes tiny parts like microchip connectors—ensuring they meet tight tolerances before mass production.

CNC prototypes cost more than sheet metal ones, but they’re a must for designs where precision can’t be compromised.

How to Choose by Matching Process to Custom Part Needs

Picking between CNC machining and sheet metal fabrication boils down to three questions:

What’s the part’s shape?

    Flat, large-surface parts (housings, panels) = sheet metal.

    Intricate, solid 3D parts (gears, pins) = CNC.

What material do you need?

    Metal sheets (stainless steel, aluminum) = sheet metal.

    Plastics or solid metals (titanium) = CNC.

What’s your timeline and budget?

    Fast, low-cost runs = quick turn sheet metal fabrication.

    Precision-focused, longer timelines = CNC.

Example 1: A medical client needs a sterile stainless steel equipment housing → medical sheet metal fabrication.

Example 2: An aerospace client needs a complex titanium bracket → 5 axis cnc machining services.

Many custom manufacturers use both: A single product might have a sheet metal housing (cheap, durable) and CNC-machined internal parts (precise, complex).

Conclusion

CNC machining and sheet metal fabrication aren’t competitors—they’re complementary tools for custom parts.

Sheet metal fabrication (from SS sheet metal fabrication to automotive sheet metal fabrication) is great for shaping flat metals into durable, low-cost parts with fast turnaround.

CNC machining (including swiss cnc machining and CNC plastic machining) delivers ultra-precise, complex parts from a wide range of solid materials.

Understanding their differences helps you avoid overpaying: Why use a large CNC machine for a simple sheet metal housing? Or try to bend metal into a CNC-ready gear? By matching each technology to your part’s design, material, and timeline, you’ll make high-quality custom components that meet both performance and budget goals.
