Designing for CNC Machining: Tips for Precision and Efficiency

Jun. 17, 2025 Seaweed

Table of Contents

Introduction 1. Material Selection for Machining Compatibility 2. Design Tolerances Without Over-Specification 3. Geometry Optimization for Enhanced Machinability 4. Toolpath Optimization Through Programmer Collaboration 5. Prototype Testing to Validate Designs Pre-Production 6. Supply Chain Alignment via CNC Machine Shop Communication Conclusion

Introduction

In the custom parts manufacturing industry, CNC machining stands as a cornerstone of precision and productivity. However, even advanced CNC machine shops and skilled operators struggle to deliver optimal results if the initial design overlooks CNC processing nuances. A well-crafted design minimizes errors and rework, reduces equipment costs, and accelerates timelines—whether for small-batch prototype CNC machining or large-scale projects. This guide breaks down actionable strategies to align design with CNC capabilities, ensuring every part meets tolerance requirements while maximizing operational efficiency.

1. Material Selection for Machining Compatibility

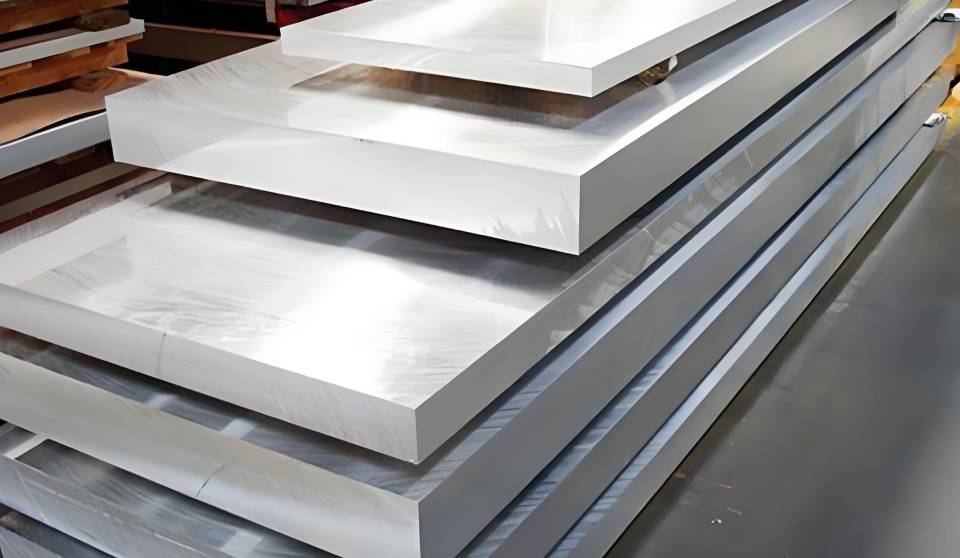

The choice of material directly impacts CNC machining precision, tool life, and overall efficiency. For instance, aluminum alloys (like 6061) are ideal for parts requiring fast turnaround: they cut easily and reduce tool wear, critical for operators handling high-volume orders. In contrast, hardened steels or titanium demand specialized tools and slower feed rates, often needing post-processing with a CNC grinding machine to achieve tight surface finish tolerances. Prototype CNC machining benefits from cost-effective materials that mirror production-grade options, helping teams test designs without inflating equipment costs. Always consult with CNC machine shops early to confirm material compatibility with their tools.

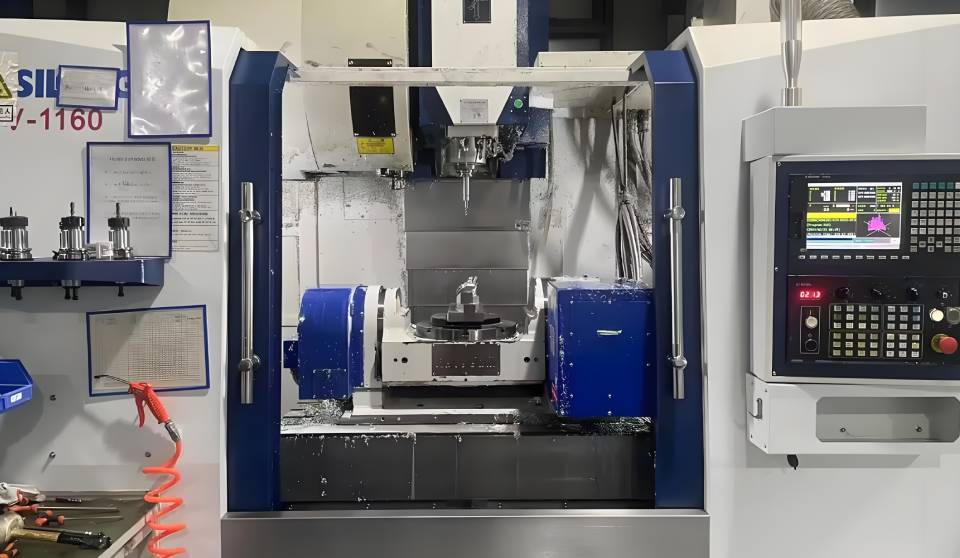

Designing for CNC Machining: Tips for Precision and Efficiency

2. Design Tolerances Without Over-Specification

Over-specifying tolerances is one of the most common design pitfalls. It forces operators to slow production, use specialized tools, and increase quality checks—all driving up costs. Instead, tolerances should align with the part’s functional needs: a non-critical cosmetic feature may only require ±0.1mm tolerance, while a mating component might need ±0.005mm. When designing for a CNC vertical machining center, consider its typical tolerance range (usually ±0.002mm for high-end models) to avoid unattainable standards. For complex geometries requiring 5 axis services, work with programmers to ensure tolerances are built into toolpaths; poor CNC machine programming here can lead to costly rejections. Remember: projects balancing precision with practicality are far more likely to stay on budget and schedule.

3. Geometry Optimization for Enhanced Machinability

Complex geometries—such as deep cavities, sharp internal corners, or uneven wall thicknesses—create challenges even for experienced operators. To improve efficiency, design parts with machinability in mind: replace sharp internal corners with radii (matching standard tool sizes) to avoid breakage, and ensure consistent wall thicknesses (minimum 1mm for most metals) to prevent warping during cutting. For parts needing multi-sided machining, 5 axis CNC machining services can eliminate multiple setups, reducing human error and cutting production time by 30-50% compared to traditional methods. When designing for post-grinding, avoid overly thin features that may bend under pressure. These adjustments make parts easier to machine and reduce workload for CNC machine jobs, letting shops handle more projects.

4. Toolpath Optimization Through Programmer Collaboration

CNC machine programming acts as the bridge between design and production, and optimizing toolpaths directly impacts efficiency and precision. Work closely with shop programmers to streamline paths: minimize empty tool movements (which waste time), use high-speed strategies for flat surfaces, and prioritize cutting order to reduce tool changes. For example, when machining a part on a vertical center, programmers can sequence cuts to start with roughing—removing bulk material quickly—before finishing for precision. For 5 axis services, toolpaths should keep the tool perpendicular to the cutting surface when possible, reducing wear and improving finish. Operator teams also play a role: they can share feedback on path efficiency during prototype runs, helping refine programs for full production. This collaboration speeds up projects and extends tool life, lowering costs.

Designing for CNC Machining: Tips for Precision and Efficiency

5. Prototype Testing to Validate Designs Pre-Production

Prototype CNC machining is critical for catching design flaws early—before they become expensive production issues. A well-executed prototype lets operators test fit, form, and function, and identify areas to adjust for better machinability. For example, a prototype might reveal a feature hard to machine on a vertical center, prompting a tweak to use 5 axis services instead. Prototyping also validates programming: if a prototype fails tolerance checks, programmers can adjust paths or speeds without wasting production materials. Additionally, testing prototypes with a CNC grinding machine confirms if surface finish requirements are achievable, avoiding later rework. Investing in prototyping upfront reduces the risk of costly delays in projects and ensures smooth scaling for ongoing jobs.

6. Supply Chain Alignment via CNC Machine Shop Communication

Successful CNC machining depends on clear communication between designers and shops. From early design stages, share 3D models (in formats like STEP or IGES) and highlight critical features—this helps shops decide if they need a grinding machine, vertical center, or 5 axis services. Be transparent about timelines and budgets: shops can then recommend cost-saving alternatives, such as using standard tool sizes instead of custom ones. For ongoing jobs, set up regular check-ins with operators to address issues quickly—especially important for complex 5 axis services, where small design misinterpretations cause major errors. Aligning design goals with shop capabilities creates an efficient workflow that benefits both parties and delivers higher-quality parts.

Conclusion

Designing for CNC machining is a collaborative, detail-oriented process balancing precision, efficiency, and cost. By selecting the right materials, setting realistic tolerances, simplifying geometries, optimizing toolpaths, testing prototypes, and aligning with shops, designers create parts that are easy to machine while meeting all functional needs. For operators, this means smoother jobs with fewer errors; for shops, it translates to lower costs and more competitive 5 axis services. Whether working on prototyping or large-scale projects, these tips bridge the gap between design and production—turning concepts into high-quality parts that drive success in the custom parts industry.
