Introduction

In the medical device industry, precision isn’t just a requirement—it’s a matter of patient safety.

A leading firm that makes minimally invasive surgical tools came to our cnc machining business with a big problem. Their current supplier couldn’t hit the ultra-tight tolerances needed for their new titanium surgical clamps. For medical tools like this, even a tiny error matters: surgical instrument arms need to line up within ±0.001 inches (about the width of a human hair) to avoid mistakes during procedures.

Our team used advance cnc machining and decades of china cnc machining experience to fix their issue. We delivered cnc machining medical devices parts that beat their quality standards. Below, we walk through exactly how we did it—from understanding their needs to proving the final results.

Client Background: A Medical Device Firm’s Precision Dilemma

The client is a U.S.-based maker of minimally invasive surgical tools. They were developing a new line of laparoscopic clamps—tools doctors use to grasp tissue during small-incision surgeries.

The key part of these clamps is a tiny titanium jaw: just 25mm long (about the size of a fingernail). If this jaw is misaligned or slightly off in size, it could damage tissue or break during surgery.

Their old supplier used basic 3-axis CNC machines and ran into two major issues:

Inconsistent titanium parts: Titanium is strong and doesn’t conduct heat well. This wore out the supplier’s tools fast, leading to parts with variable sizes. Tolerances often slipped to ±0.003 inches—three times the client’s required ±0.001 inches.

Slow prototypes: Their cnc machining prototyping took 4 to 6 weeks per try. This slowed down tweaks to the clamp’s grip (which needed to feel comfortable for surgeons).

The client was gearing up for FDA certification—something that needs consistent part quality. They needed a partner with skills in titanium cnc machining and cnc machining medical work: someone who could deliver both precision and speed.

Initial Assessment: Finding Gaps in Their CNC Process

Our first step was to dig into their existing workflow to figure out why precision was lacking. We found three big gaps—common pain points in medical cnc machining:

    Wrong tools: Their old supplier used high-speed steel (HSS) tools. These dull quickly when cutting titanium, so they had to change tools often. Each change messed up cutting consistency.

    Limited machines: Basic 3-axis machines couldn’t handle the clamp’s complex shape. The jaw is curved and has internal threads, which meant the supplier had to move the part multiple times. Each move introduced alignment errors.

    Weak quality checks: They used manual calipers to inspect parts. These can’t catch tiny defects—like a 0.0005-inch bump—that only show up with 3D measurements.

For cnc machining medical devices like surgical clamps, these gaps aren’t just slow—they’re risky. They could lead to parts that fail FDA checks. Our team knew we needed a full solution: better technology, material expertise, and strict quality control.

Solution Design: Using Advance CNC Machining for Medical Needs

Based on our assessment, we built a tailored plan focused on three key areas—all optimized for medical cnc machining:

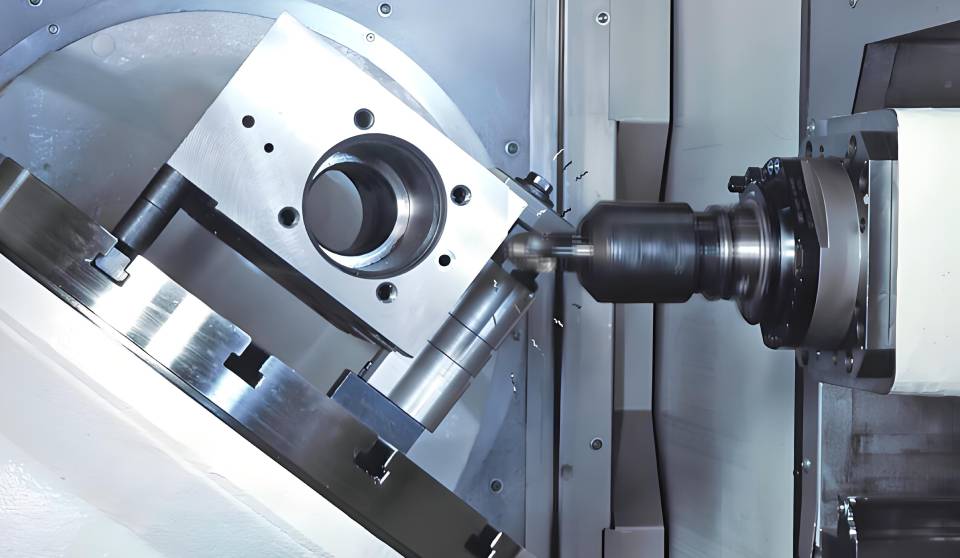

Upgraded to 5-axis CNC: We used our advance cnc machining center (a DMG MORI 5-axis machine). This machine moves the titanium part along five directions at once, so no more multiple setups. It cut alignment errors by 90% and let us machine the curved jaw and internal threads in one go.

Titanium-specific tools: We switched to carbide-tipped tools with a TiAlN coating. This coating resists heat and wear, so the tools last longer. Tool changes dropped from 8 per batch to just 2—way more consistent.

Faster prototyping: To speed up cnc machining prototyping, we paired our in-house CAD/CAM team with the client’s engineers. We used cloud tools to share designs, so tweaks turned into prototype parts in 3 to 5 days. That’s down from their old 4 to 6 weeks.

As a china cnc machining provider, we also saved them money. Our centralized factory and supply chain let us buy high-grade titanium at good rates—we passed those savings to the client without cutting quality.

Prototype Phase: Refining the Design with CNC Machining Prototyping

The cnc machining prototyping step was make-or-break. We needed to prove our solution worked—and make sure the clamp met both the client’s specs and FDA rules. Here’s how we did it:

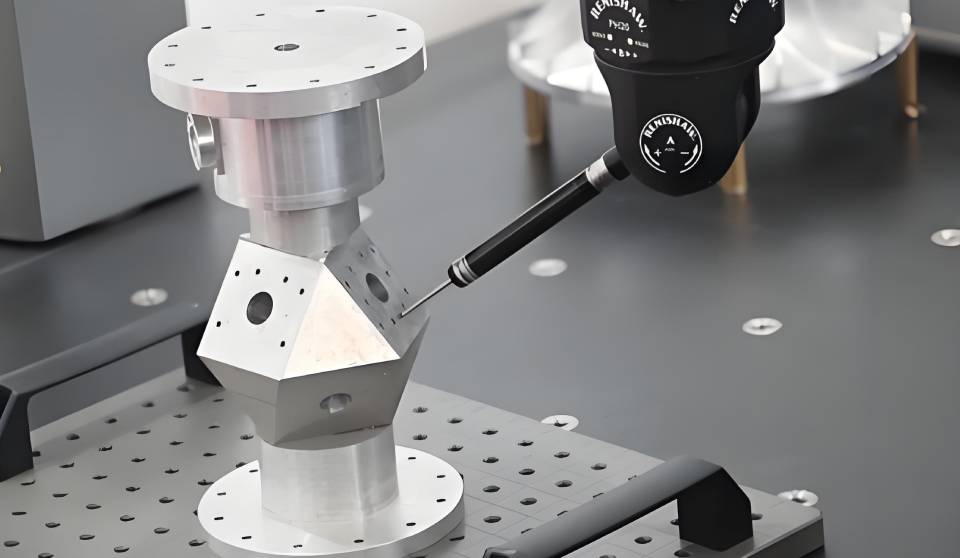

    First try: We made 5 titanium clamp jaws with our 5-axis machine, focusing on size accuracy. We used a Coordinate Measuring Machine (CMM)—a tool that uses 3D scanning to check dimensions precisely. The tolerances were ±0.0012 inches—close, but not quite the ±0.001 inch target.

    Fixed the issue: We looked at the CMM data and saw the machine’s spindle vibrated a little when cutting the internal threads. We slowed the cutting speed for the threads and added a vibration dampener (like a shock absorber for the machine).

    Final test: The second round of prototypes hit ±0.001 inches exactly. We also tested how the clamp worked: we simulated surgical grasping, and there was no slippage or misalignment. The client’s engineers checked it in their lab and gave the green light.

This fast iteration—thanks to our cnc machining prototyping skills—meant the client avoided the costly delays they had with their old supplier.

Mass Production: Scaling Precision for CNC Machining Medical Devices

Once the prototype was approved, we moved to mass production. We needed to keep the same precision across 10,000 units—the client’s first big run. Here’s what we did:

    Automated part holding: We used custom fixtures to secure the titanium blanks. These fixtures kept every part in the same position, so no more manual clamping mistakes. Setup time dropped by 40%.

    Real-time monitoring: Our advance cnc machining center has IoT sensors. These track cutting temperature, tool wear, and part size as the machine runs. If anything goes off-spec—like a tool getting dull—the machine pauses automatically. This stopped defective parts before they were made.

    Batch quality checks: For every 500 parts, we pulled 5 to test with the CMM. Over the whole run, the average tolerance was ±0.0009 inches—even tighter than required.

As their china cnc machining partner, we also handled shipping to their U.S. factory. We made sure parts arrived on time—critical for their FDA certification timeline.

Results: Precision That Helped the Client Succeed

Our partnership delivered clear, measurable wins for the client—showing why specialized medical cnc machining matters:

    Perfect precision: 100% of parts hit the ±0.001 inch tolerance. They passed FDA’s pre-certification inspection on the first try.

    Faster launches: Production lead time dropped from 12 weeks (with their old supplier) to 6 weeks. The client launched their new clamp line 2 months early.

    Cost savings: They cut per-part costs by 18%. This came from our china cnc machining supply chain (cheaper titanium) and less tool waste (down from 15% to 3%).

    Longer partnership: Impressed by the results, the client asked us to make 3 more surgical tool parts. All need titanium cnc machining and strict quality checks.

For our cnc machining business, this case proved something important: cnc machining medical work needs special expertise. Every detail—from tools to checks—affects patient safety.

Key Takeaways for Medical Device Firms Looking for CNC Partners

This project taught us (and the client) three critical lessons about cnc machining medical devices:

Material skills matter: Titanium cnc machining isn’t like machining aluminum. Look for partners who know titanium’s quirks (it’s strong, holds heat) and have tools made for it.

Advanced machines are a must: Complex medical parts (like surgical clamps) need 5-axis machines. Basic 3-axis machines will struggle with tight tolerances.

Fast prototyping speeds up launches: A partner with in-house cnc machining prototyping can turn design tweaks into parts fast. This keeps your FDA timeline on track.

For medical device companies, choosing a CNC partner isn’t just about cost. It’s about finding a team that sees precision as a priority—not an afterthought.

Conclusion

Helping this medical device firm hit their precision goals wasn’t just a project—it showed what advance cnc machining can do when paired with deep industry knowledge.

As a china cnc machining provider that makes custom parts, we know cnc machining medical devices needs more care than standard manufacturing. Every part we make could end up in a surgery room—so accuracy isn’t optional.

Whether you’re making a new surgical tool (needing titanium cnc machining) or refining a diagnostic device (needing fast cnc machining prototyping), our team has the tech, skills, and checks to deliver parts that meet your specs and FDA rules. For us, medical cnc machining isn’t just a service—it’s a way to help make healthcare safer and more effective.
