Introduction

In the field of custom parts manufacturing, CNC machining serves as a cornerstone technology for producing complex, accurate components. However, the success of any CNC machining project begins with thoughtful design—a well-designed part not only meets quality standards but also reduces waste, saves time, and controls costs. Whether you collaborate with a cnc machining engineer or a specialized CNC service provider, understanding how to design with CNC machining in mind unlocks the full potential of this technology. This guide outlines key tips to enhance both precision and efficiency in your CNC machining designs, while integrating industry-specific terms to boost your understanding of the CNC machining industry.

Understand CNC Machining Capabilities to Align Design with Reality

It is critical to grasp cnc machining capabilities—the range of tasks, geometries, and complexities that CNC machines can handle. Every CNC machine, whether it is a 3-axis, 5-axis model, or a rt cnc machining system (which uses rotary tables for multi-sided processing), has its limitations. For example, 3-axis machines excel at creating flat or simple 3D parts but struggle with undercuts or complex angles, which 5-axis machines can easily tackle. By aligning your design with the specific capabilities of the machine being used, you can avoid costly redesigns and ensure a smoother production process. For intricate cuts, specifying a 5-axis machine early in the design phase prevents compromising on part geometry or adding unnecessary production steps. Additionally, partnering with contracting cnc machining services gives you access to a broader range of capabilities, allowing you to design more ambitious parts without being limited by in-house equipment.

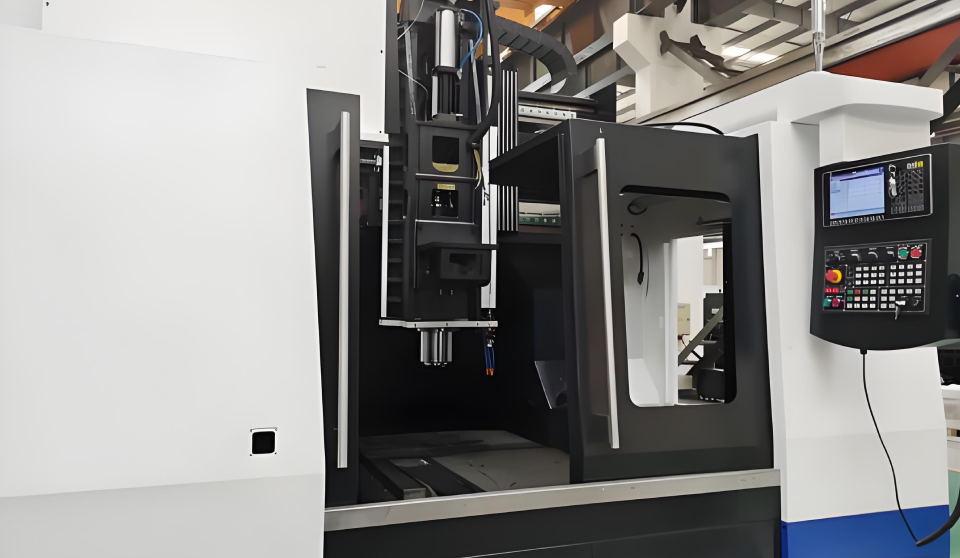

Designing for CNC Machining: Tips for Precision and Efficiency

Prioritize CNC Machining Tolerances for Consistent Quality

CNC machining tolerances—the allowable deviation from the exact dimensions specified in a design—are essential for producing high-quality parts. Even minor deviations can render a component unusable, especially in precision-driven industries like medical device manufacturing or aerospace. When designing for CNC machining, it is important to define tolerances realistically: overly tight tolerances increase production time and costs, while tolerances that are too loose can compromise part functionality. Focus on identifying the critical features of your part (those that directly impact performance or assembly) and assign tighter tolerances to these areas. For non-critical features, use standard tolerances to keep production efficient. For instance, a high precision cnc machining part such as a valve component may require tolerances of ±0.001 inches for its sealing surface, while a less critical mounting hole could have a tolerance of ±0.005 inches. A cnc machining engineer can help balance precision needs with manufacturing feasibility, ensuring your tolerances are both achievable and cost-effective. Reputable CNC providers also consistently meet specified tolerances through calibrated equipment and strict quality control processes.

Choose the Right CNC Machining Materials for Performance and Machinability

The selection of cnc machining materials has a significant impact on both the performance of the final part and the efficiency of the machining process. Different materials have unique properties—such as hardness, thermal conductivity, and ductility—that affect how easily they can be cut, drilled, or milled, as well as how the part will perform in its end application. Aluminum is a popular choice for many CNC projects due to its excellent machinability, light weight, and corrosion resistance. Aluminium cnc machining china has become a go-to option for global manufacturers, as Chinese providers offer high-quality aluminum machining services at competitive rates, making it ideal for parts like automotive brackets or electronic enclosures. On the other hand, harder materials like titanium or stainless steel require specialized tools and slower machining speeds, which can increase production time and costs. When choosing a material, consider both the part’s functional requirements (e.g., strength, heat resistance) and its machinability. For example, if your part needs to withstand high temperatures, Inconel may be the right choice—but you will need to adjust your design (e.g., avoid thin walls that could warp during machining) and work with a provider experienced in handling superalloys. Selecting the right material early in the design process helps avoid material-related delays and ensures the part meets both performance and cost goals.

Optimize Part Geometry to Reduce Machining Time and Waste

A part’s geometry is one of the most impactful factors in determining CNC machining efficiency. Complex geometries—such as deep pockets, thin walls, or sharp internal corners—can increase machining time, require specialized tools, and raise the risk of errors or material waste. To improve efficiency, simplify the part’s geometry wherever possible without compromising functionality. For example, replace sharp internal corners with radii (curved edges) that match the size of the end mill being used. Sharp corners often require multiple tool changes or slower feed rates to avoid tool damage, while radii allow for faster, smoother cuts. Similarly, avoid overly deep pockets: deep pockets require longer tools, which are more prone to vibration (chatter), leading to poor surface finish and reduced precision. If a deep pocket is necessary, design it with a gradual taper to improve tool access and stability. Another key tip is to minimize the number of setups required to machine the part. Each setup adds time and increases the risk of alignment errors, so designing parts that can be machined in one or two setups (e.g., by positioning all critical features on one side) significantly boosts efficiency. This optimization is even more critical for high precision cnc machining parts, as fewer setups mean less opportunity for deviations from the design.

Consider CNC Machining Pricing Early to Control Costs

Cost is a key consideration in any manufacturing project, and cnc machining pricing is heavily influenced by design choices. By factoring in pricing drivers early in the design phase, you can make informed decisions that keep costs in check without sacrificing quality. Several design elements impact pricing: material costs (as discussed earlier), machining time (driven by part complexity and tolerances), and tooling costs (for specialized tools needed for unique geometries). To reduce costs, start by selecting cost-effective materials that still meet performance needs—for example, use 6061 aluminum instead of a more expensive alloy like 7075 if strength requirements allow. Next, optimize the part’s geometry to minimize machining time: avoid unnecessary features, use standard tolerances for non-critical areas, and design parts that can be machined with common tools. Additionally, working with contracting cnc machining providers can help reduce costs through economies of scale, especially for large production runs. Transparent CNC services will show you how design tweaks (e.g., eliminating the need for a custom tool that adds $500 to the project cost) can save money without affecting part functionality.

Collaborate with CNC Machining Engineers for Design Validation

No matter how well you design a part, having a cnc machining engineer review and validate your design is a critical step toward ensuring success. CNC machining engineers possess specialized knowledge of machine capabilities, material behavior, and manufacturing best practices—knowledge that can help identify potential issues before production begins. For example, an engineer might notice that a thin wall in your design is prone to warping during machining and suggest increasing its thickness slightly to improve stability. Or they may recommend adjusting a tolerance to align with the machine’s capabilities, reducing production time and costs. Collaboration with engineers is especially important for high precision cnc machining parts or complex designs, where even small oversights can lead to major problems. Many contracting cnc machining providers offer design for manufacturability (DFM) reviews as part of their services. During a DFM review, an engineer will assess your design for machinability, identify areas for optimization, and provide recommendations to enhance precision and efficiency. This collaborative process not only reduces the risk of costly errors but also ensures your design is fully optimized for the CNC machining process, resulting in a higher-quality part delivered on time and within budget.

Conclusion

Designing for CNC machining requires balancing precision, efficiency, and cost-effectiveness. By understanding cnc machining capabilities, defining realistic cnc machining tolerances, selecting the right cnc machining materials, optimizing part geometry, considering cnc machining pricing, and collaborating with cnc machining engineers, you can create designs that unlock the full potential of CNC technology. Whether you are working on a simple component or a complex high precision cnc machining part, partnering with reliable contracting services or leveraging specialized options like rt cnc machining or aluminium cnc machining china can further enhance your project’s success. Remember, a well-designed part is the foundation of a successful CNC machining project—investing time and effort in the design phase will pay off in the form of high-quality parts, reduced costs, and streamlined production.
